HP Fan detection
01 Mar 2021 16:59 - 01 Mar 2021 17:01 #51
by sluc
Replied by sluc on topic HP Fan detection

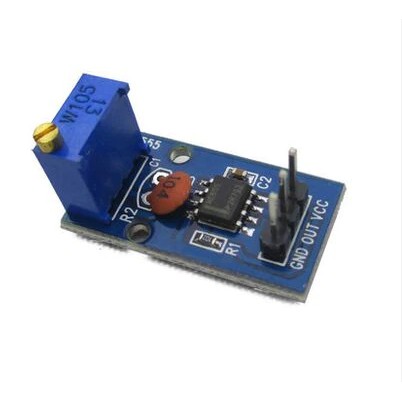

Solved the fan problem;Found this 555-generator online (china)
I got the idea from this site: www.techidiots.net/notes/fake-fan-sensor
The RPM and his calculations are for a different type of server.
I measured the frequency of the TACH wire on the original fans which is about 120 Hz at full speed.
So i set the frequency on the generator in that range
The indication I get now on UBUNTU:
@HP-server:~$ sensors
coretemp-isa-0000
Adapter: ISA adapter
Core 0: +46.0°C (high = +74.0°C, crit = +100.0°C)
Core 1: +46.0°C (high = +74.0°C, crit = +100.0°C)
smsc47b397-isa-0480
Adapter: ISA adapter
fan1: 4041 RPM
fan2: 0 RPM
fan3: 4041 RPM
fan4: 0 RPM
temp1: -128.0°C
temp2: -128.0°C
temp3: -128.0°C
temp4: -128.0°C
I found some cheap 3-wire fans online. Turns out the TACH wire is fake. There is no TACH-signal generated in the fan.
I got the idea from this site: www.techidiots.net/notes/fake-fan-sensor
The RPM and his calculations are for a different type of server.
I measured the frequency of the TACH wire on the original fans which is about 120 Hz at full speed.
So i set the frequency on the generator in that range
The indication I get now on UBUNTU:
@HP-server:~$ sensors
coretemp-isa-0000
Adapter: ISA adapter
Core 0: +46.0°C (high = +74.0°C, crit = +100.0°C)
Core 1: +46.0°C (high = +74.0°C, crit = +100.0°C)
smsc47b397-isa-0480
Adapter: ISA adapter
fan1: 4041 RPM
fan2: 0 RPM
fan3: 4041 RPM
fan4: 0 RPM
temp1: -128.0°C
temp2: -128.0°C
temp3: -128.0°C
temp4: -128.0°C
I found some cheap 3-wire fans online. Turns out the TACH wire is fake. There is no TACH-signal generated in the fan.
Last edit: 01 Mar 2021 17:01 by sluc.
Please Log in to join the conversation.
- sluc
-
Topic Author
- Offline
- New Member
-
- Never too old to learn !
Less
More
05 Feb 2021 08:54 #36
by sluc
Replied by sluc on topic HP Fan detection
Thanks riider for joining!
Regarding the fan problem; I did some research and the only solution seems to be a new (quiet) fan with 3 wire plug (tach wire OK) or a pulse generator to emulate tach signal. A 3-wire fan 90mm goes around 50$ and up. That's 100$+ for an old machine.
The generator is a LM555 chip with a few resistors and a capacitor. Only a few $ at best.
Cannot find the component or temperature sensor on the MB driving the fans. Dismantled and cleaned the system thoroughly but still the same result.
Regarding the fan problem; I did some research and the only solution seems to be a new (quiet) fan with 3 wire plug (tach wire OK) or a pulse generator to emulate tach signal. A 3-wire fan 90mm goes around 50$ and up. That's 100$+ for an old machine.
The generator is a LM555 chip with a few resistors and a capacitor. Only a few $ at best.
Cannot find the component or temperature sensor on the MB driving the fans. Dismantled and cleaned the system thoroughly but still the same result.
Please Log in to join the conversation.
- sluc
-
Topic Author
- Offline
- New Member
-
- Never too old to learn !
05 Feb 2021 06:54 #34
by riider
Replied by riider on topic HP Fan detection
I thought I posted a reply but I don't know where it went?
See the following for a discussion about PWM fans & fan controllers.
h30434.www3.hp.com/t5/Business-PCs-Works...roblems/td-p/7126487
See the following for a discussion about PWM fans & fan controllers.
h30434.www3.hp.com/t5/Business-PCs-Works...roblems/td-p/7126487
Please Log in to join the conversation.
- riider
- Offline
- New Member
-
Less
More
- Posts: 6
- Thank you received: 1
01 Feb 2021 11:22 #30
by sluc
HP Fan detection was created by sluc
My Linux OS distribution name and version: Ubuntu server on HP 5700
This is an older HP desktop I use as web and mail server. Lately the fans (CPU and Case fans) run at full speed for no reason. Temps on CPU and MB are below 40C. The fans (90mm 4-pin) are too noisy, so I want replaced with fans that run around 2000rpm quietly.
The problem now is that HP MB detects missing fans and does not boot until F1 on a keyboard is pressed. (there is no need for display or keyboard connected all the time since it is a server and access is via ssh) That means if power is interrupted (happens from time to time here) the server does not boot up because of the missing fans.
No i can not disable the fan detection in BIOS! So I'm thinking to connect pin 3 (tach) of the fan header to ground (-) to simulate fan presence.
Anybody has any experience with this?
This is an older HP desktop I use as web and mail server. Lately the fans (CPU and Case fans) run at full speed for no reason. Temps on CPU and MB are below 40C. The fans (90mm 4-pin) are too noisy, so I want replaced with fans that run around 2000rpm quietly.
The problem now is that HP MB detects missing fans and does not boot until F1 on a keyboard is pressed. (there is no need for display or keyboard connected all the time since it is a server and access is via ssh) That means if power is interrupted (happens from time to time here) the server does not boot up because of the missing fans.
No i can not disable the fan detection in BIOS! So I'm thinking to connect pin 3 (tach) of the fan header to ground (-) to simulate fan presence.
Anybody has any experience with this?
Please Log in to join the conversation.
- sluc
-
Topic Author
- Offline
- New Member
-
- Never too old to learn !
